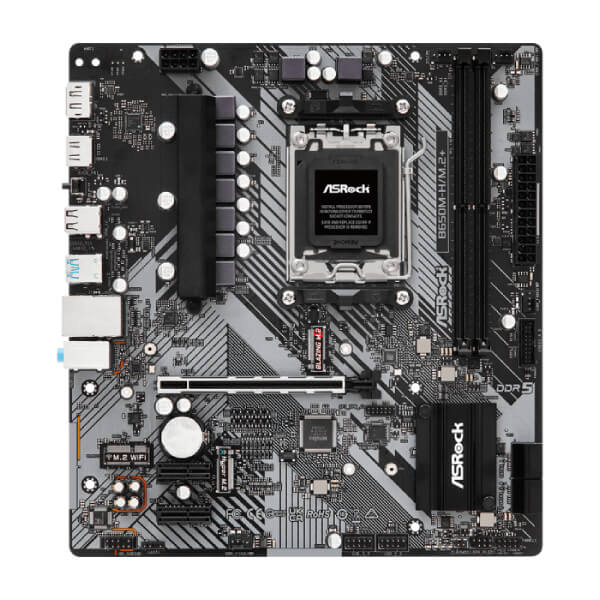

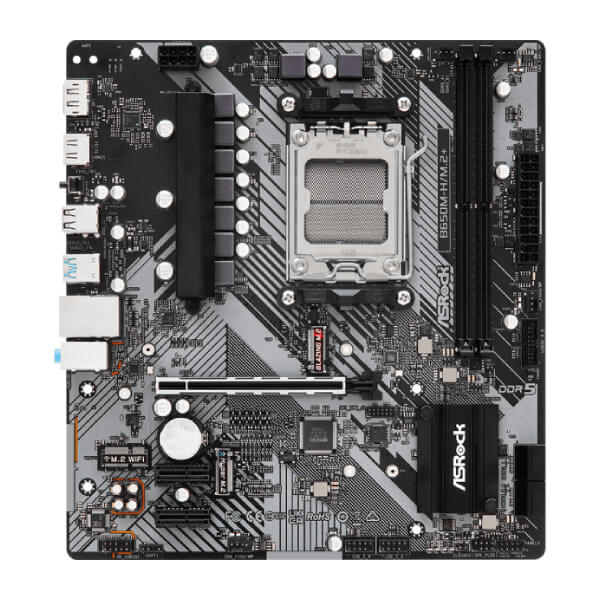

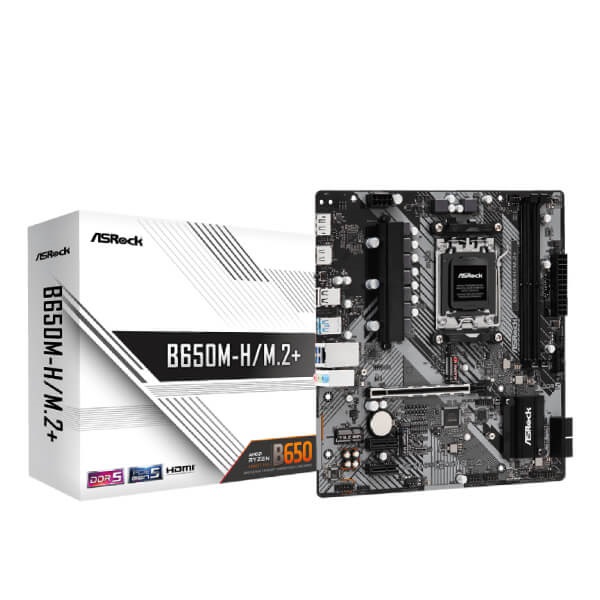

ASRock B650M-H/M.2+ Motherboard

Features:
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
6+1+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 6400+ (OC)
1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA 2 Graphics
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
Specification:
Model B650M-H/M.2+
Unique Feature Superb Productivity
PCIe Gen5 (M.2)
Dual Channel DDR5
Rock-Solid Durability
6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
CPU Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset AMD B650
Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Slots CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
1 x USB 3.2 Gen1 Type-C (Rear)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
ASRock Motherboard Utility (A-Tuning)
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
