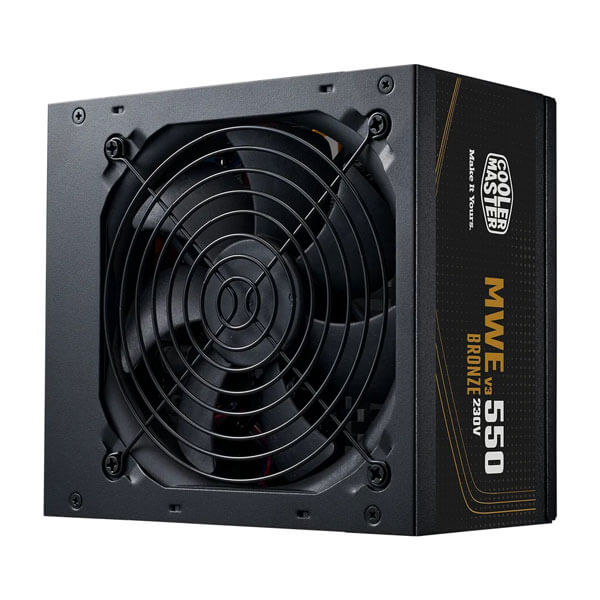

Cooler Master MWE 550 V3 ATX 3.1 80 Plus Bronze SMPS

MWE Bronze 550 V3 230V
Features:
ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty
Introducing the MWE Bronze V3 230V, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Bronze V3 will evolve your machine.
Quiet HDB fan: A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
80 Plus Bronze efficiency certification: This unit is certified to achieve more than 88% efficiency at typical loads in a 230V test.
ATX 3.1 support: Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Specifications:
Model Number MPE-5501-ACABW-3BIN
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 200-240V
Input Current 5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Fan Size 120mm
Fan Bearing HDB
Efficiency >88% @ Typical Load
80 PLUS Rating 80 PLUS Bronze EU 230V
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 – 150 ms
Hold Up Time >16ms
MTBF >100,000 Hours
Protections UVP / OVP / OPP / OTP / SCP
Regulatory TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)
Series MWE Bronze Series
Category 500 to 750W
Modular Non Modular
80 Plus Bronze
Form Factor ATX
Watts 550W
ATX 24 Pin Connectors 1
EPS 8 Pin / 4+4 Pin Connectors 2
SATA Connectors 6
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
Warranty 5 Years
Note
*** Features, Price, Specifications are subject to change without notice.
