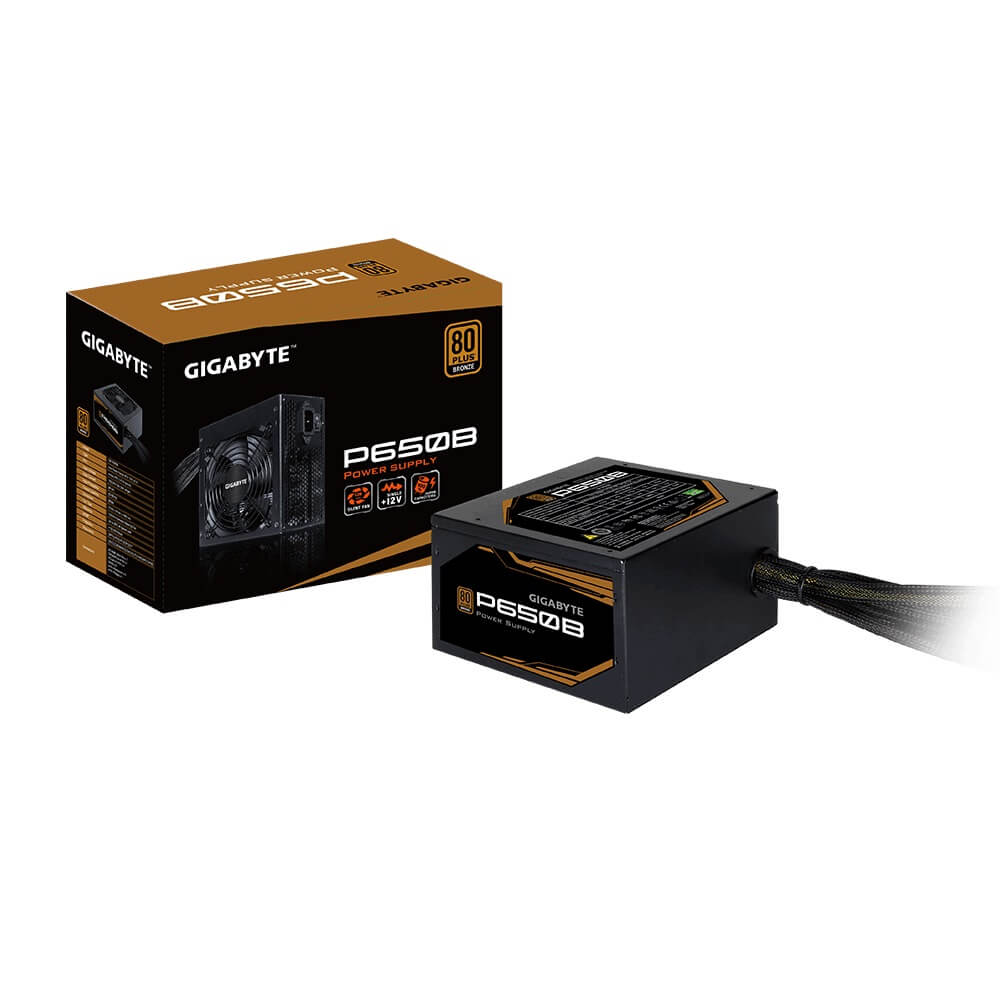

Gigabyte P650B 650 Watt 80 Plus Bronze SMPS

Features
80 PLUS bronze certified: up to 89% efficiency
100% Japanese Capacitors
120mm Hydraulic Bearing (HYB) Fan
Single +12V rail
Meet ErP LOT6 2013 (< 0.5W at standby mode) OPP/UVP/OVP/SCP/OCP protection 80 Plus Bronze Certified 80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency. Reliable Mesh Braided Cable P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case. 100% Japanese Capacitors All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. Single +12V Rail Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation. 120mm Hydraulic Bearing (HYB) Fan 120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time. Specifications Model P650B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current
9A-4A
Input Frequency
50-60 Hz
Output Capacity 650W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing Fan
Efficiency Up to 85% at typical load
MTBF >100,000 hours
Protection OPP/UVP/OVP/SCP/OCP
Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Connectors ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
